Floating - Smart Chargers

Floating - Smart Chargers

Floating chargers for your sealed lead acid (SLA) batteries.

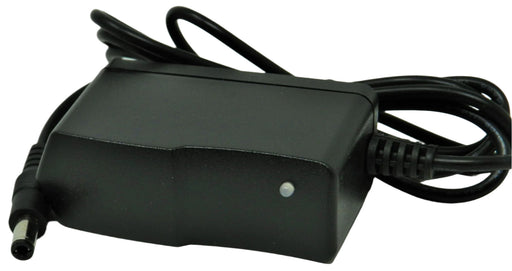

Part #: FC-680B

INPUT: 100~240VAC 50/60Hz 1A

OUTPUT: 6VDC @ 0.8A

PLUG: @ 2.5 x 5.5mm

LED light w/2 colors: RED = Fast Charge >25% rate

GREEN= Ready and in float (trickle) charge < 25% rate

  • Charger for 6VDC lead acid battery
  • Standard no load reading @ 6.7VDC
  • CuL approved
  • RoHs



Part #: FC-612C

INPUT: 100~240VAC 50/60Hz 20W

OUTPUT: Selectable 6VDC or 12VDC

Current Selectable: @ 200mA, 400mA, or 800mA

PLUG: Alligator Clips

LED light w/2 colors: RED = Fast Charge >25% rate

GREEN= Ready and in float (trickle) charge < 25% rate

  • RoHs
  • Reverse polarity protection
  • In line DC Fuse GMA-2A



Part #: FC-1250B

INPUT: 100~240VAC 50/60Hz 20W

OUTPUT: 12VDC @ 0.5A

PLUG: @ 2.5 x 5.5mm

LED light w/2 colors: RED = Fast Charge >25% rate

GREEN= Ready and in float (trickle) charge < 25% rate

  • Charger for 12VDC lead acid battery
  • Standard no load reading @ 13.8VDC
  • CuL approved
  • RoHs

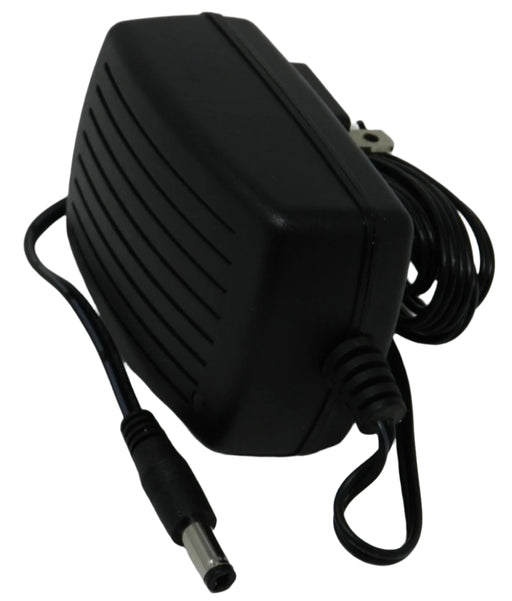

Part #: FC-1212B

INPUT: 100~240VAC 50/60Hz 20W

OUTPUT: 12VDC @ 1.2A (max)

PLUG: @ 2.5 x 5.5mm

LED light w/2 colors: RED = Fast Charge >25% rate

GREEN= Ready and in float (trickle) charge < 25% rate

  • Charger for 12VDC lead acid battery
  • Standard no load reading @ 13.8VDC
  • CuL approved
  • RoHs



Part #: FC-12250

INPUT: 100~240VAC 50/60Hz 20W

OUTPUT: 12VDC @ 2.5A (max)

PLUG: Alligator Clips

LED light w/2 colors: RED = Fast Charge >25% rate

GREEN= Ready and in float (trickle) charge < 25% rate

  • Charger for 12VDC lead acid battery
  • Standard no load reading @ 13.8VDC
  • UL approved
  • RoHs



Part #: FC-123AQ

INPUT: 100~240VAC 50/60Hz 0.9A

OUTPUT: 12VDC @ 3.0A (max)

PLUG: Alligator Clips

LED light w/2 colors: RED = Fast Charge >25% rate

GREEN= Ready and in float (trickle) charge < 25% rate

  • Charger for 12VDC lead acid battery
  • Standard no load reading @ 14.2VDC~14.8VDC
  • CuL/TUV/GS/CE approved
  • RoHs



Part #: FC-2450B

INPUT: 100~240VAC 50/60Hz 20W

OUTPUT: 24VDC @ 0.5A

PLUG: @ 2.5 x 5.5mm

LED light w/2 colors: RED = Fast Charge >25% rate

GREEN= Ready and in float (trickle) charge < 25% rate

  • Charger for 24VDC lead acid battery
  • Standard no load reading @ 27VDC
  • UL approved
  • RoHs



Part #: FC-2412GT

INPUT: 100~240VAC 50/60Hz 20W

OUTPUT: 24VDC @ 1.2A (max)

PLUG: Alligator Clips

LED light w/2 colors: RED = Fast Charge >25% rate

GREEN= Ready and in float (trickle) charge < 25% rate

  • Charger for 24VDC lead acid battery
  • Standard no load reading @ 27.0VDC
  • CuL/TUV/GS/CE approved
  • RoHs



Part #: FC-361C

INPUT: 100~240VAC 50/60Hz 20W

OUTPUT: 36VDC @ 1.0A (max)

PLUG: Alligator Clips

LED light w/2 colors: RED = Fast Charge >25% rate

GREEN= Ready and in float (trickle) charge < 25% rate

  • Charger for 36VDC lead acid battery
  • Standard no load reading @ 41.4VDC
  • CE approved
  • RoHs



Part #: FC-4805

INPUT: 100~240VAC 50/60Hz 20W

OUTPUT: 48VDC @ 0.5A (max)

PLUG: Alligator Clips

LED light w/2 colors: RED = Fast Charge >25% rate

GREEN= Ready and in float (trickle) charge < 25% rate

  • Charger for 48VDC lead acid battery
  • Standard no load reading @ 55.2VDC
  • UL approved
  • RoHs
