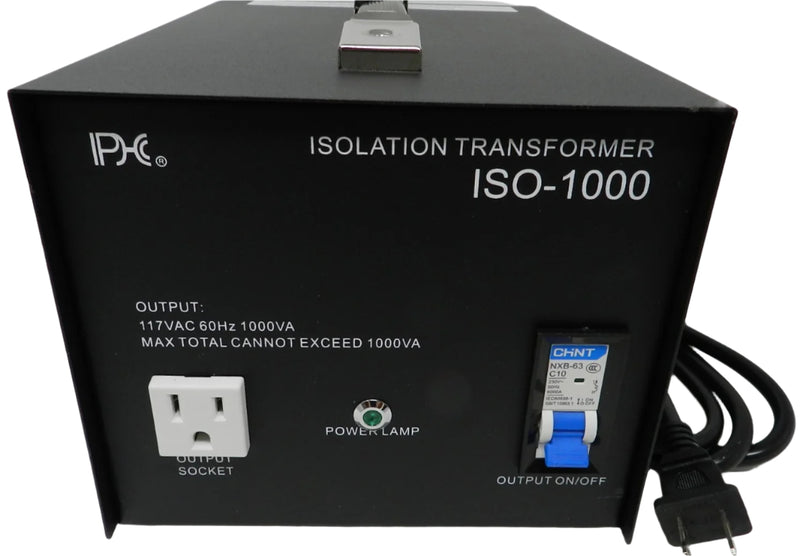

1000VA Isolation Transformer ISO-1000 Front View

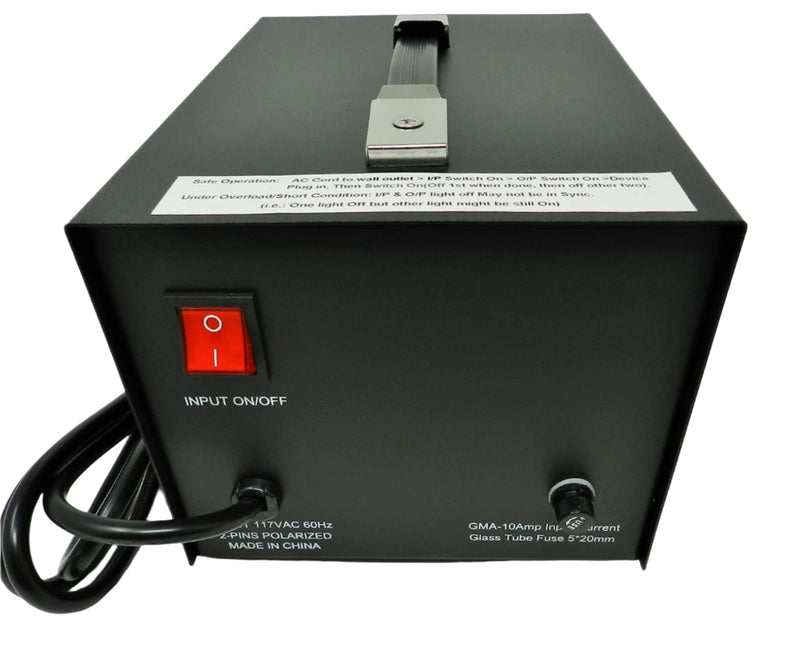

1000VA Isolation Transformer 117VAC to 117VAC
1000VA Isolation Transformer Wiring Schematic ISO-1000
1000VA Isolation Transformer ISO-1000 Front View
1000VA Isolation Transformer 117VAC to 117VAC
1000VA Isolation Transformer Wiring Schematic ISO-1000

1000VA Isolation Transformer, 117VAC to 117VAC

by PHC Enterprise

Save 14% Save 14%
$199.99
$199.99 - $199.99
$199.99
$172.00
$172.00 - $172.00
$172.00

Part #: ISO-1000

  • Input Voltage: 117VAC
  • Output Voltage: 117VAC
  • Max Power Rating: 1000VA
  • 10 Amp fuse protection: 5mm x 20mm (fast blow) Part #: GMA-10A-5
  • Dimensions: 9.5”(L) x 6.8”(W) x 6”(H)
  • Polarized 2-prong output power cord. No grounding wire connected inside

Engineered for Technician Safety

  • True Isolation: Provides complete galvanic isolation from the AC line, making it a mandatory safety tool for servicing vintage "hot chassis" radios and amplifiers.

  • Polarized Protection: Features a polarized 2-prong output to ensure correct orientation for older equipment.

  • Heavy Duty Capacity: 1000VA (10 Amp) rating handles high-draw equipment without breaking a sweat.

  • Easy Maintenance: External 10A fuse (GMA-10A-5) allows for quick resets and protection against overloads.
