3ft UL-Certified 18AWG DC Extension Cable (2.1mm x 5.5mm) - Heavy Duty, Black | HDCX3T
Note: This 3ft cable is currently out of stock. We recommend our 6ft Heavy Duty DC Extension Cable (HDCX6T) as a high-quality alternative.

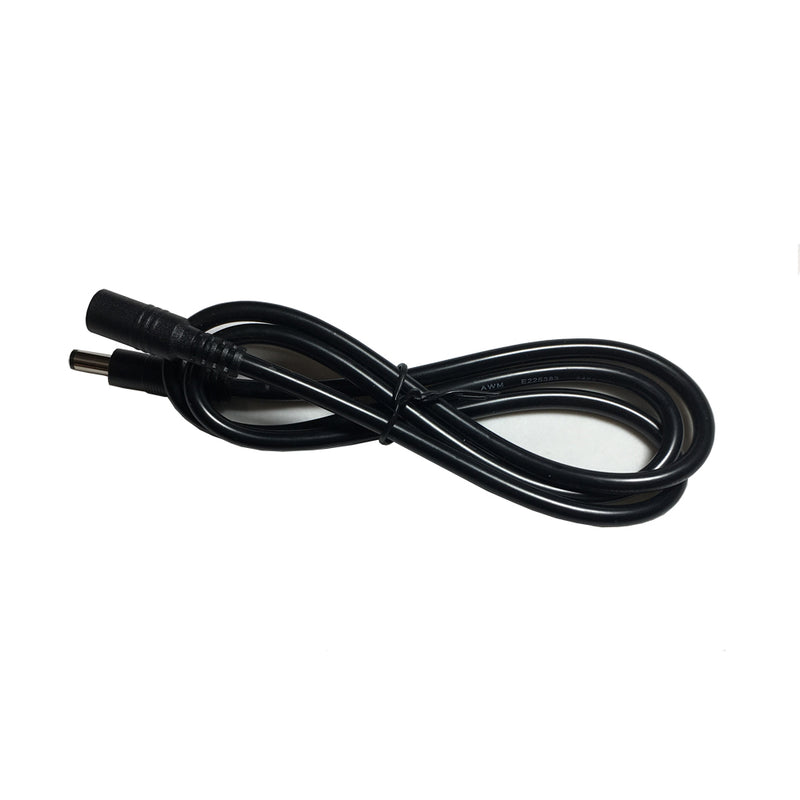

Heavy-Duty 3ft DC Power Extension Cable — 18 AWG UL2464 | Part: HDCX3T
The HDCX3T is a compact, industrial-grade DC power extension cable for applications where you just need a little more reach. Featuring an 18 AWG pure copper core and UL 2464-certified flame-retardant jacketing, it delivers reliable power with minimal voltage drop — the right choice when a standard cable is just a few inches too short.
Technical Specifications
- Part Number: HDCX3T

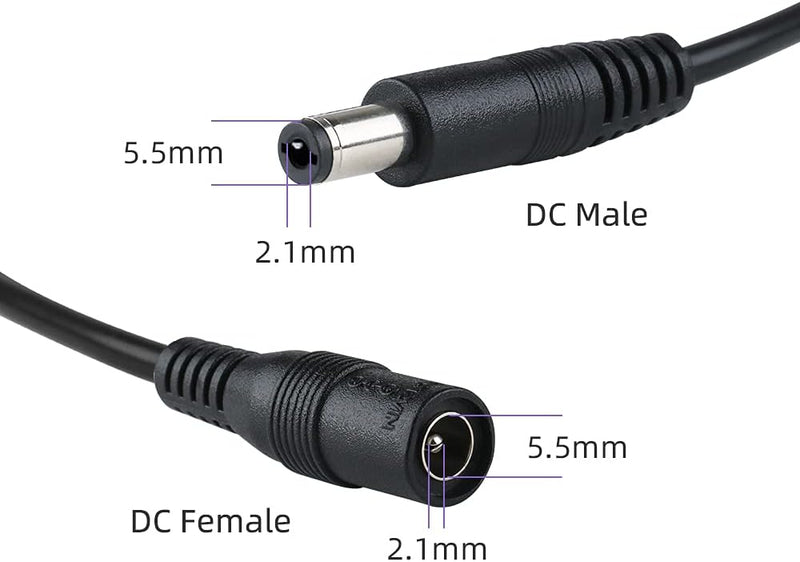

- Connector Type: 2.1mm (ID) x 5.5mm (OD) — center positive compatible
- Wire Gauge: 18 AWG (higher current capacity vs. standard 22AWG/24AWG)
- Cable Length: 3 feet (0.91 meters)
- Connectors: 1x Female Jack (input) + 1x Male Plug (output), molded strain relief
- Jacket: UL 2464 component rated — flame retardant, industrial grade
- Color: Black
- Conductor: Pure copper (not CCA)
Common Use Cases & Compatible Devices
- CCTV and IP security cameras where the power supply is nearby
- LED light strips and LED signage (12V, 24V systems)
- Routers, modems, and networking hardware
- DVRs, NVRs, and external hard drives
- Audio mixing boards and recording equipment
- Any 2.1mm x 5.5mm DC-powered device needing a short extension
Frequently Asked Questions
Q: What is the maximum current this cable supports?
A: The 18 AWG copper conductors support up to approximately 5–7A at 12V for a 3-foot run. Always verify against your power supply's rated output.
Q: Is this cable center positive or center negative?
A: The 2.1mm x 5.5mm barrel connector passes through whatever polarity your power supply outputs. Polarity is not fixed by the cable itself.
Q: Is a white version available?
A: Yes — see the HDCX3W for the white version of this cable.
Q: Need a longer cable?
A: See the HDCX6T (6ft), HDCX12T (12ft), or HDCX20T (20ft) for longer heavy-duty options.
