Adjustable DC Bench Power Supply, 3–15V DC, 4A, Black | APS-415

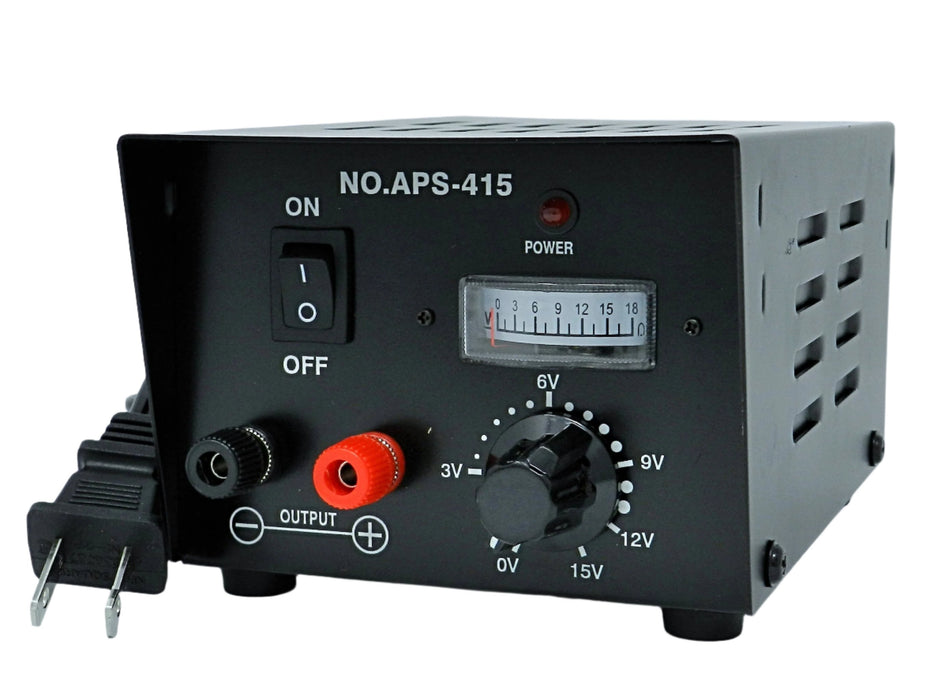

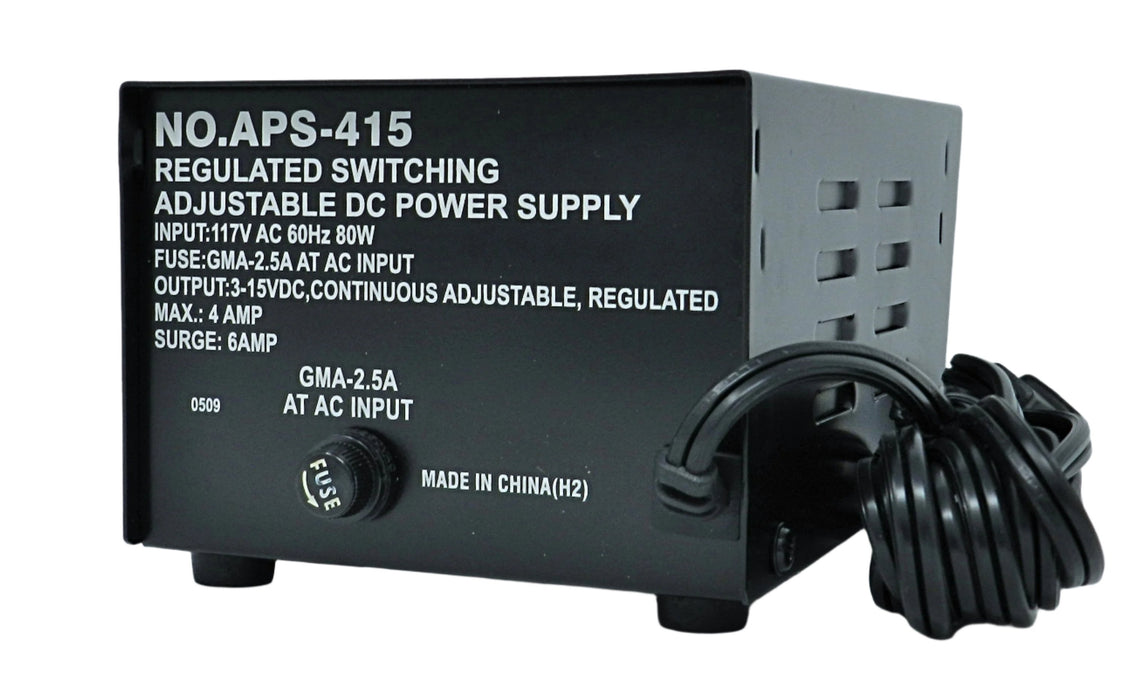

Part APS-415 is a black adjustable regulated switching DC bench power supply designed for low-voltage testing and electronics workbench applications. Easily adjust the output voltage from 3V to 15V DC and connect your load via the front binding post terminals. Delivers a maximum continuous output current of 4A.
Technical Specifications
- Part: APS-415
- Input Voltage: 117V AC, 60Hz
- Output Voltage: Adjustable 3–15V DC
- Maximum Output Current: 4A
- Output Terminals: Front binding posts (compatible with 4mm banana plugs, spade lugs, or bare wire)
- Display Type: Analog meter
- Chassis Color: Black
- Dimensions: 6.5 × 4.5 × 3.5 in. (H × W × L)
- Product Weight: 3.5 lb
Common Uses & Operation Guidelines
Ideal for benchtop testing or powering low-voltage DC circuits, small cooling fans, LEDs, and hobbyist electronics projects within the supply's specified rating. For 12V or 13.8V DC projects, set and verify the output voltage using a multimeter before connecting your load.
Check Before Connecting: Always verify that your device requires DC voltage, draws 4A or less continuous current, and matches the output wiring polarity. The front binding posts do not feature device-specific barrel plugs. This unit is a regulated DC bench supply—it does not provide AC output and is not designed for starting vehicle motors.
Frequently Asked Questions
Can I set the output to 13.8V DC?
Yes. 13.8V falls within the adjustable 3–15V DC range. Always verify the voltage with a multimeter at the output terminals before connecting your load.
What types of connectors work with the front terminals?
The front panel features standard binding posts that accept 4mm banana plugs, spade terminals, or direct bare wire connections.
Can this power supply drive automotive accessories or ham radio equipment?
Only after confirming that the equipment requires DC voltage within the adjustable 3–15V range, that both its continuous and startup current requirements are within the supply’s 4A rating, and that its polarity and connection method are suitable. Set and verify the output voltage before connecting, and use leads and connections rated for the intended current. Device category alone does not establish compatibility. Do not exceed the maximum 4A rating.
Does this unit have an AC output or battery jump-start capability?
No. Part APS-415 provides regulated DC output only and is designed for benchtop electronic testing. It is not an AC power source or a vehicle jump starter.
